Zenith 65 Dosatore Ver:201711 Parts List

  • Product NamePriceDate AddedMost Popular
  • Version
FLAT WASHER M6 GALVANIZED

FLAT WASHER M6 GALVANIZED

Ref: Page: 1,3

FLAT WASHER M6 GALVANIZED

more info
SCREW ? 2.9x6.5 mm SELF-TAPPING

SCREW ? 2.9x6.5 mm SELF-TAPPING

Ref: Page: 1,3

SCREW ? 2.9x6.5 mm SELF-TAPPING

more info
PLUG FOR DOSING UNIT ? 4x16 mm

PLUG FOR DOSING UNIT ? 4x16 mm

Ref: Page: 1,3

PLUG FOR DOSING UNIT ? 4x16 mm

more info
PIN SPRING ? 4x12 mm

PIN SPRING ? 4x12 mm

Ref: Page: 1,3

PIN SPRING ? 4x12 mm

more info
SCREW 6X25 CYLINDRICAL GALVANISED

SCREW 6X25 CYLINDRICAL GALVANISED

Ref: Page: 1,3

SCREW 6X25 CYLINDRICAL GALVANISED

more info
SHAFT ELASTIC RING D5 DIN6799

SHAFT ELASTIC RING D5 DIN6799

Ref: Page: 1,3

SHAFT ELASTIC RING D5 DIN6799

more info

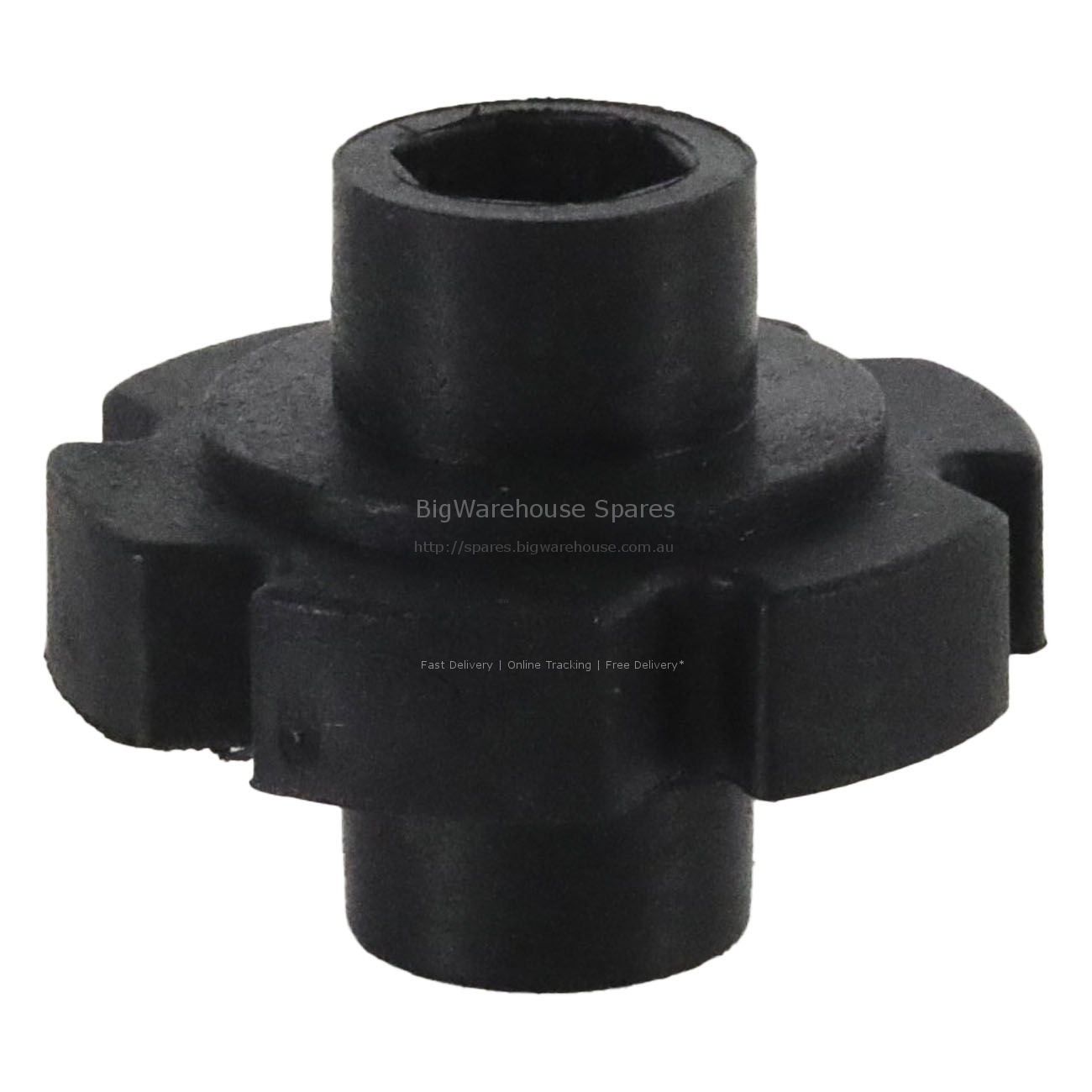

MIDDLE STAR

MIDDLE STAR

Ref: Page: 1,2

MIDDLE STAR

more info
SCREW M6x8 GALVANISED BUSH

SCREW M6x8 GALVANISED BUSH

Ref: Page: 1,3

SCREW M6x8 GALVANISED BUSH

more info
BUSHING FOR DOSER

BUSHING FOR DOSER

Ref: Page: 1,3

BUSHING FOR DOSER

more info
UPPER STAR

UPPER STAR

Ref: Page: 1,2

UPPER STAR

more info
COUNTER FOR COFFEE GRINDER

COUNTER FOR COFFEE GRINDER

Ref: Page: 1,2

COUNTER FOR COFFEE GRINDER

more info
SELF-FORMING SCREW M5x10 TRILOBED

SELF-FORMING SCREW M5x10 TRILOBED

Ref: Page: 1,3

SELF-FORMING SCREW M5x10 TRILOBED

more info
DOSER SECTOR ROTAX AREA ROTAX DOSER

DOSER SECTOR ROTAX AREA ROTAX DOSER

Ref: Page: 1,2

DOSER SECTOR ROTAX AREA ROTAX DOSER

more info
DOSER HEAD

DOSER HEAD

Ref: Page: 1,2

DOSER HEAD

more info
DOSER CYLINDER ? 124 mm

DOSER CYLINDER ? 124 mm

Ref: Page: 1,2

DOSER CYLINDER ? 124 mm

more info
FLAP FLANGE ROTAX

FLAP FLANGE ROTAX

Ref: Page: 1,2

FLAP FLANGE ROTAX

more info
FLAT GASKET PTFE ? 41x36x1 mm

FLAT GASKET PTFE ? 41x36x1 mm

Ref: Page: 1,2

FLAT GASKET PTFE ? 41x36x1 mm

more info
DOSER LEVER

DOSER LEVER

Ref: Page: 1,2

DOSER LEVER

more info
PAWL 6-TEETH

PAWL 6-TEETH

Ref: Page: 1,2

PAWL 6-TEETH

more info
TAMPER PLASTIC FOR ZENITH ? 57 mm

TAMPER PLASTIC FOR ZENITH ? 57 mm

Ref: Page: 1,2

TAMPER PLASTIC FOR ZENITH ? 57 mm

more info
